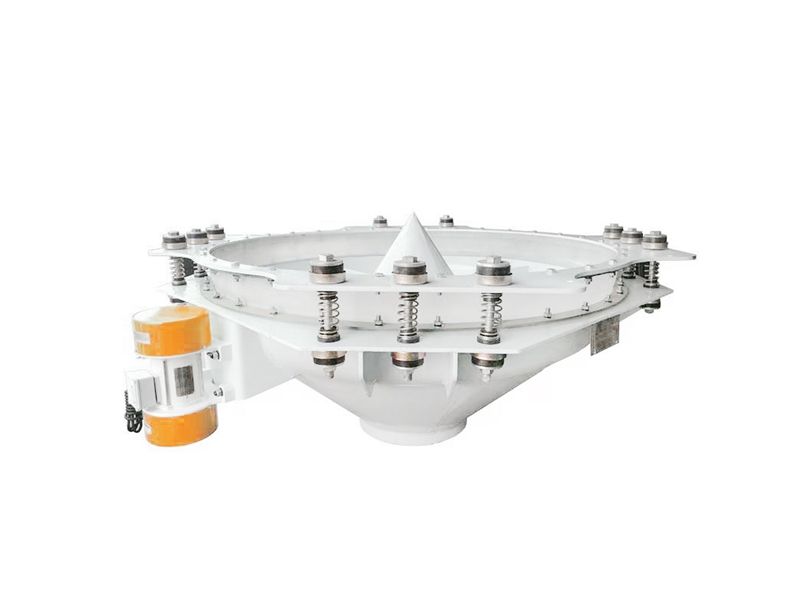

The material falls from the bottom of the bin and enters the vibrating unloader/discharger. The vibrating motor drives the vibrating bucket for high-frequency vibration. After the material is vibrated, it flows down evenly and slowly through the surface of the discharge tray.
The materials flow out from the discharge port steadily and evenly, and the materials in the warehouse are not easy to arch. The inner wall of the vibrating unloader/discharger is smooth, and the materials are discharged evenly according to the first-in, first-out principle
Détail
The material falls from the bottom of the bin and enters the vibrating unloader/discharger. The vibrating motor drives the vibrating bucket for high-frequency vibration. After the material is vibrated, it flows down evenly and slowly through the surface of the discharge tray.
The materials flow out from the discharge port steadily and evenly, and the materials in the warehouse are not easy to arch. The inner wall of the vibrating unloader/discharger is smooth, and the materials are discharged evenly according to the first-in, first-out principle
| Model | Motor Speed (r/min) | Аmplitude (mm) | Power(kW) | Weight(kg) | Dimension （mm） |
| TDXZ100×30 | 1430 | 0.8~3.2 | 0.37 | 220 | 1480×1260×530 |
| TDXZ130×30 | 0.37 | 300 | 1780×1560×560 | ||
| TDXZ130×50 | 0.37 | 280 | 1780×1560×640 | ||
| TDXZ160×50 | 0.55 | 550 | 2080×1860×704 | ||
| TDXZ200×50 | 0.55×2 | 820 | 2480×2260×895 |
