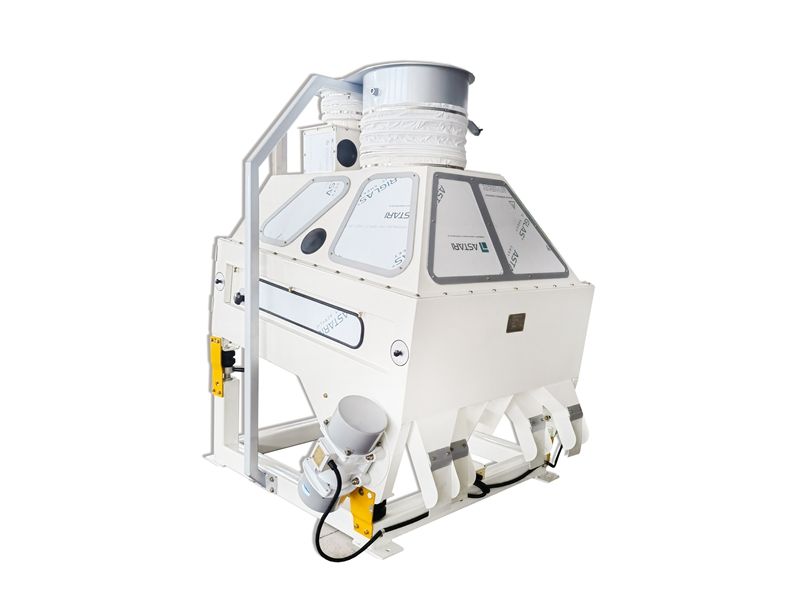

TQSF Gravity Grading Destone composed of feeding device, screen body, elastic support mechanism, suction device, and vibration motor.
Détail
TQSF Gravity Grading Destone composed of feeding device, screen body, elastic support mechanism, suction device, and vibration motor. The gravity grading stone removal machine divides materials into three types: light materials, heavy materials, and sand and gravel.
| Model | Sieve size(cm) | Weight (kg) | Air pressure(pa) | Dimension(mm) | Power(kw) | Capacity(T/H) | Air volume （m³/h） |
| TQSF40 | 40 | 215 | <980 | 1270x700x1600 | 0.25x2 | 1.5-2.5 | 3000 |
| TQSF50 | 50 | 230 | <980 | 1470x780x1800 | 0.25x 2 | 4-6 | 4000 |
| TQSF63 | 63 | 280 | <980 | 1450x876x1800 | 0.25x 2 | 5-7 | 4500 |
| TQSF80 | 80 | 340 | <980 | 1450x1046x1800 | 0.25x2 | 7-9 | 6000 |
| TQSF100 | 100 | 400 | <980 | 1500x1246x1900 | 0.25x2 | 9-11 | 8000 |
| TQSF125 | 125 | 500 | <980 | 1500x1496x1920 | 0.25x2 | 11-16 | 10200 |
| TQSF150 | 150 | 610 | <980 | 1500x1746x1800 | 0.37x2 | 12-18 | 12000 |
| TQSF175 | 175 | 680 | <980 | 1500x1996x1800 | 0.37x 2 | 18-24 | 15000 |
| TQSF200 | 200 | 720 | <980 | 1500x2246x1900 | 0.37x2 | 16-26 | 17000 |
| TQSF250 | 250 | 980 | <980 | 1500x2796x1920 | 0.37x2 | 22-32 | 20600 |
