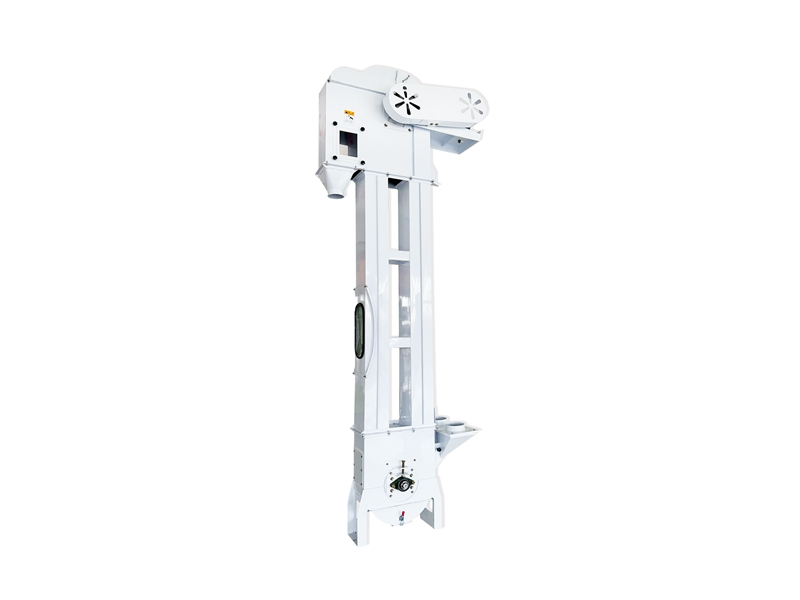

Bucket elevator is a fixed mechanism for hauling materials.
Détail
Bucket elevator is a fixed mechanism for hauling materials. It uses the bucket to contain powders, particles or small bulk materials, and then elevates the bucket in a vertical and continuous way. This machine is commonly seen in different-sized feed manufacturing plants, flour processing mills, starch factories and cereal storage stations.
• Made of steel.
• With ratchet system to protect working safety.
• Special treatment for the pulley to avoid belt skidding.
• High strength belt and bucket.
| Modle | Dia.(mm) | Spec(mm) | Max.lifting height(m) |
| TDTG20/11 | ф200 | 110*90 | 12 |
| TDTG20/13 | ф200 | 130*110 | 20 |
| TDTG26/18 | ф260 | 150*110 | 25 |
| TDTG36/18 | Ф360 | 180*120 | 30 |
| TDTG36/23 | ф360 | 230*120 | 30 |
| TDTG40/23 | ф400 | 230*140 | 30 |
| TDTG50/28 | ф500 | 280*140 | 30 |
